Casting Sheave
MAIN FEATURES
· Range: Φ250mm~Φ3000mm
· Manufactured from finest casting steel
· Grooves are manufactured by CNC and heat teated by intermediate frequency quenching
with hardness Min. HB350-370 and deep around 2.5mm
· Bronze bushed
· Common Bore
· MT test
· 3.1 material cert
OPTIONAL FEATURES
· Casted from iron casting
· fitted with tapered roller bearings,bearing brand SKF,FAG,TIMKEN,NSK etc on request
· Finished bore on customer drawing's request
· Power Paint Coated
· Load Test
· BV 3.2, LR 3.2,DNV 3.2, ABS 3.2 material certs are on request

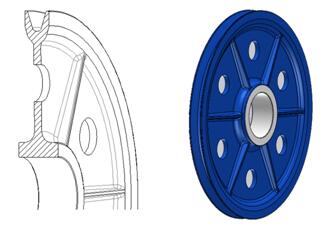

1) Casting Sheave General Structure

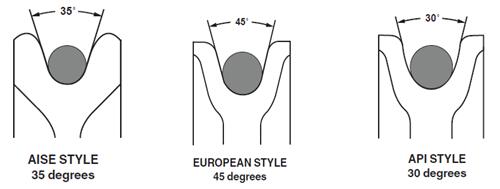

2) Wire Rope Groove Profiles

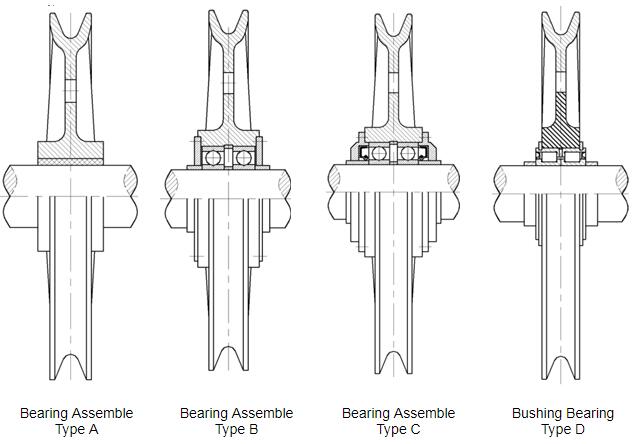

3) Sheave Accemble Form



Hot Rolling Sheave
MAIN FEATURES
· Range: Φ250mm~Φ1500mm
· Manufactured from high quality steel plate S355 or equivalent and welded by qualified welders
· Grooves are manufactured by hot rolling and heat teated by intermediate frequency quenching
with hardness Min. HB350-370 and deep around 2.5mm
· Bronze bushed
· Common Bore
· MT test on Weld Joints
· 3.1 material cert
OPTIONAL FEATURES
· fitted with tapered roller bearings,bearing brand SKF,FAG,TIMKEN,NSK etc on request
· Fully customizable
· Finished bore on customer drawing's request
· Power Paint Coated or other paint specifications on request
· Load Test
· UT test on Weld Joints
· BV 3.2, LR 3.2,DNV 3.2, ABS 3.2 material certs are on request

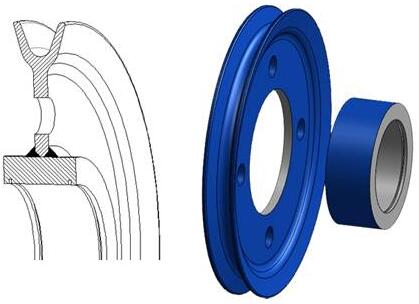

1) Hot Rolling Sheave General Structure

2) Wire Rope Groove Profiles
