    Product Details
    Dockside Bollards
    The dockside bollards ( also known as Jetty Bollards, Pier Bitts, Jetty Bitts, Mooring Cleats, Wharf Bitts,Dock Bollards, Terminal Bollards etc )are used for mooring application when the vessels berth,our all Dockside Bollards are manufactured from high quality cast steel or cast iron.
    We supply a wide range of Dockside Bollards from SWL10ton to 300ton.
    Our all Dockside Bollards are strictly quenched and tempered to ensure good performance such as ductility,toughness,impact and fatigue properties, if without this quench and tempering process,the toughness will be reduced,will have great potential risk !
    After heat treatment, charpy impact inspections are proceeded for each heat number castings to check the material toughness at required temperature,-60 ℃ impact inspection is available.,this is for harsh or heavy cold weather applications.
    If requested at the time of order,Dockside Bollards can be furnished proof tested with certificates or only approve design calculations to save your purchase cost.
    All Bollards are finished to sand blasting Sa 2.5 to enhance the paint adhesion and reduce wear. Normally, the coating system is 3 players, the Paint Brand and Colour and Dry Film Thickness on request.  Electrostatic Spraying or Gavanized or Dacromet etc high-level surface treatments are available.
    We have developed many series these years, such as Trelleborg Series, Maritime Series,Fendercare Series.

    MAIN FEATURES
    · Manufactured from high quality cast steel or cast iron as sand casting production progress
    · Precision casting production progress on request ,higher cost than sand casting but better performance
    · SWL range: 10T~300T
    · Ultralow temperature material is available
    · Design calculation can be supplied when order
    · 8.8 grade or 10.9 grade anchor bolts on request
    · Proof load test certificate on request
    · Sand blasting to Sa 2.5 or high level is available
    · 3 layers coating system, Paint Brand and Colour and Dry Film Thickness can be specified
    · Electrostatic Spraying or Gavanized or Dacromet etc high-level surface treatments for increasing anticorrosion time are available
    · CCS,BV,RINA and 3.2 material certifications are available,ABS,LR,DNV inspection report on request

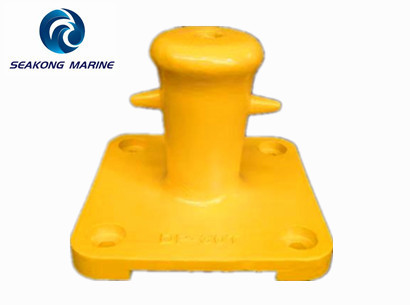

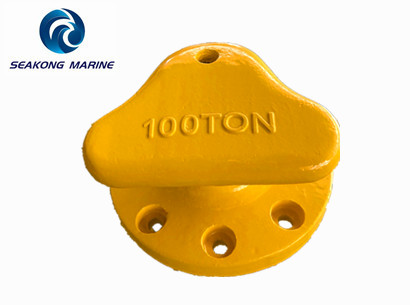

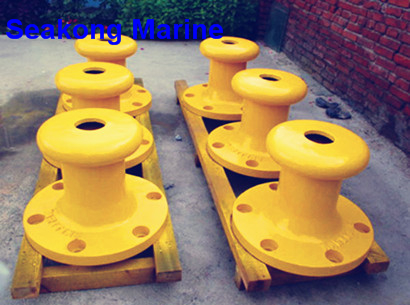

    Tee Head Bollard

    Type (ton) Dimensions(mm) Bolt
    A B C D E F G H J No. Dia.
    10 157 350 305 241 286 127 45 91 248 5 24
    15 172 400 350 275 330 135 51 105 300 5 24
    20 190 483 410 290 360 145 50 125 360 5 24
    30 250 600 540 380 476 190 65 155 460 5 30
    50 300 800 650 480 570 245 80 206 600 5 36
    60 300 800 650 490 570 245 90 206 600 5 36
    75 343 800 720 510 620 260 90 222 650 6 48
    100 374 1000 813 600 710 306 100 265 750 7 48
    125 376 1000 813 600 710 306 100 265 750 7 48
    150 430 1080 900 670 830 350 110 283 800 7 48
    200 460 1080 930 685 848 320 125 287 830 7 56

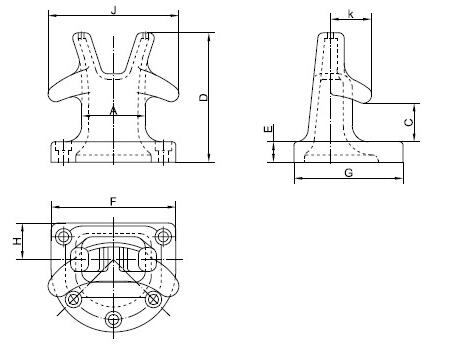

    Twin Head Bollard

    Type (ton) Dimensions(mm) Bolt
    A B C D E F G H J K No. Dia.
    20 203 203 140 476 70 483 406 165 407 165 5 24
    30 254 254 152 533 76 610 572 267 508 184 6 24
    40 305 305 152 617 127 610 610 305 610 210 4 36
    50/60 317 298 178 597 83 762 660 279 559 229 7 30
    75 355 355 191 743 95 851 724 305 761 241 7 36
    100 356 356 202 774 114 965 838 356 762 242 7 48
    150 432 432 254 851 114 1016 914 381 838 278 7 48
    200 432 432 254 857 120 1016 914 381 838 278 7 5

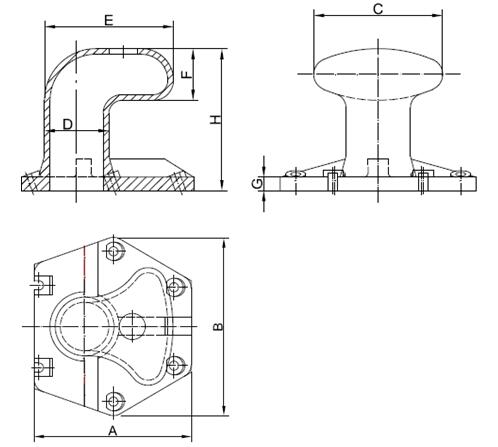

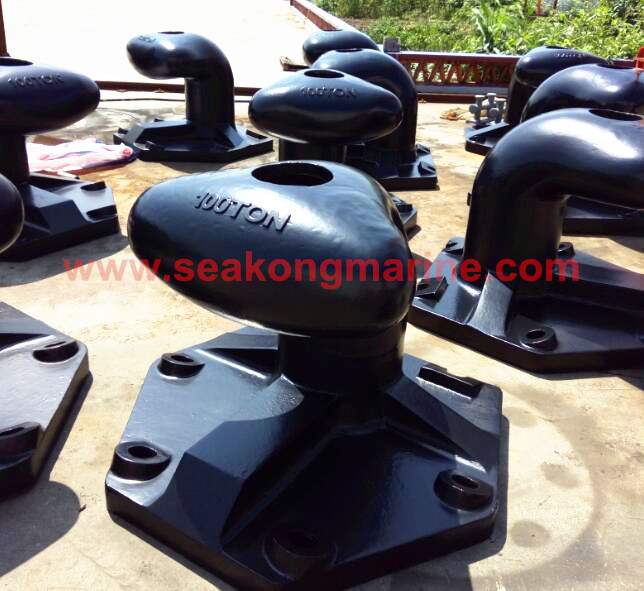

    BT Type Dockside Bollard

    Nominal Size
    (ton)
    A B C D E F G H No. of bolts Pull Load
    (ton)
    50 840 934 700 350 700 280 65 780 6xM48 50
    75 1067 1224 750 400 750 300 75 885 6xM52 75
    100 1200 1350 900 450 900 380 80 1005 6xM64 100
    150 1480 1480 935 550 935 439 110 1200 8xM64 150
