Product Details

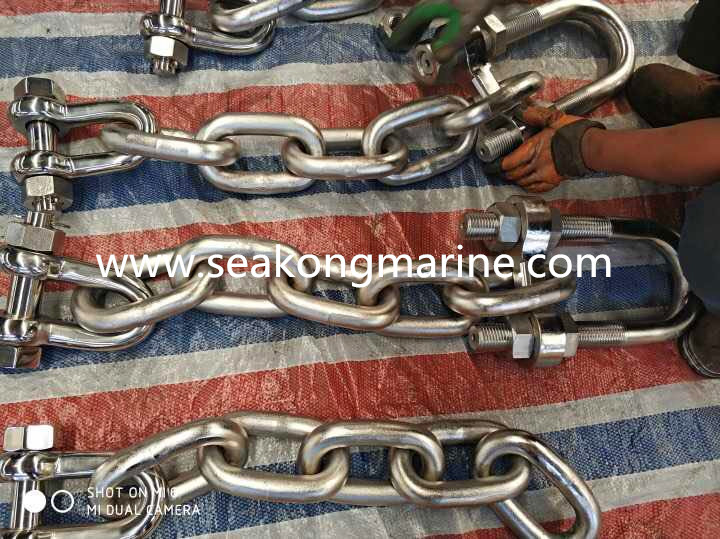

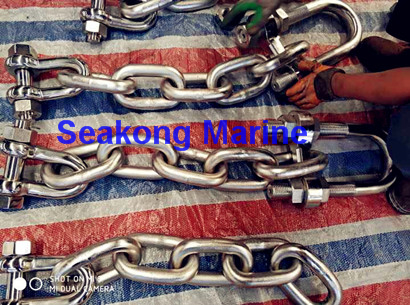

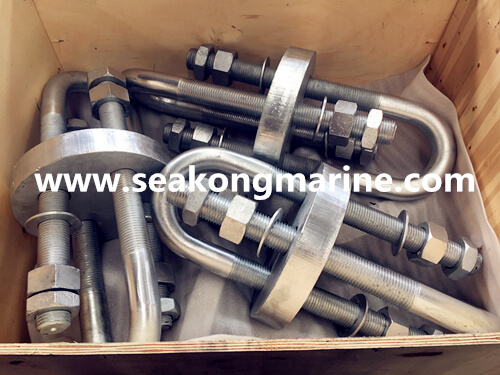

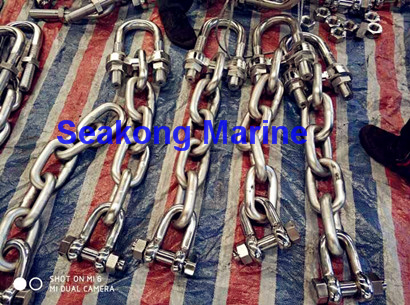

Chain Tensioner
Chain Tensioner are used to connect with Shear Chain or Tension Chain for fender system.
Our all shackles are manufactured from high quality grade 8.8 steel and hot-dip galvanized for long life.
The hot-dip galvanizing is to be EN ISO1461 and min. 120 microns thickness.
Chain Tensioner are used to connect with Shear Chain or Tension Chain for fender system.
Our all shackles are manufactured from high quality grade 8.8 steel and hot-dip galvanized for long life.
The hot-dip galvanizing is to be EN ISO1461 and min. 120 microns thickness.

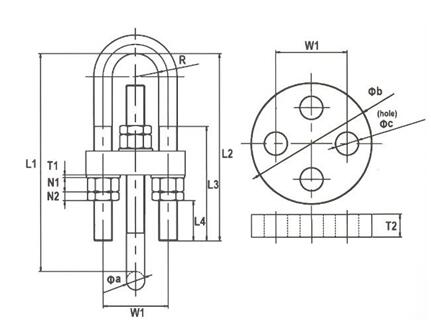

| L1 | L2 | L3 | Min.L4 | T1 | T2 | N1 | N2 | W1 | φa | φb | φc | R |
| 230-305 | 200 | M20x140 | 3 | 3 | 25 | 19 | 10 | 70 | 20 | 120 | 23 | 25 |
| 250-340 | 220 | M22x140 | 3 | 3 | 25 | 22 | 12 | 78 | 22 | 125 | 28 | 30 |
| 270-350 | 240 | M24x160 | 3 | 3 | 30 | 22 | 12 | 84 | 24 | 150 | 28 | 30 |
| 310-420 | 270 | M27x180 | 3 | 3 | 30 | 25 | 14 | 95 | 27 | 180 | 31 | 34 |
| 345-465 | 300 | M30x200 | 5 | 4 | 35 | 27 | 15 | 106 | 30 | 200 | 34 | 38 |
| 420-560 | 360 | M36x220 | 5 | 5 | 40 | 32 | 20 | 126 | 36 | 210 | 40 | 45 |
| 460-650 | 420 | M42x315 | 8 | 6 | 50 | 35 | 25 | 148 | 42 | 250 | 46 | 53 |
| 530-755 | 480 | M48x315 | 8 | 6 | 55 | 39 | 20 | 168 | 48 | 280 | 52 | 60 |
| 450-550 | 390 | M56x230 | 8 | 8 | 60 | 46 | 26 | 196 | 56 | 330 | 60 | 70 |
| 680-950 | 600 | M60x400 | 8 | 8 | 65 | 49 | 28 | 210 | 60 | 360 | 65 | 75 |
| 730-1010 | 640 | M64x420 | 8 | 8 | 70 | 53 | 30 | 224 | 64 | 380 | 70 | 80 |
Contact Us Now
Product Details
Chain Tensioner
Chain Tensioner are used to connect with Shear Chain or Tension Chain for fender system.
Our all shackles are manufactured from high quality grade 8.8 steel and hot-dip galvanized for long life.
The hot-dip galvanizing is to be EN ISO1461 and min. 120 microns thickness.
Chain Tensioner are used to connect with Shear Chain or Tension Chain for fender system.
Our all shackles are manufactured from high quality grade 8.8 steel and hot-dip galvanized for long life.
The hot-dip galvanizing is to be EN ISO1461 and min. 120 microns thickness.
| L1 | L2 | L3 | Min.L4 | T1 | T2 | N1 | N2 | W1 | φa | φb | φc | R |
| 230-305 | 200 | M20x140 | 3 | 3 | 25 | 19 | 10 | 70 | 20 | 120 | 23 | 25 |
| 250-340 | 220 | M22x140 | 3 | 3 | 25 | 22 | 12 | 78 | 22 | 125 | 28 | 30 |
| 270-350 | 240 | M24x160 | 3 | 3 | 30 | 22 | 12 | 84 | 24 | 150 | 28 | 30 |
| 310-420 | 270 | M27x180 | 3 | 3 | 30 | 25 | 14 | 95 | 27 | 180 | 31 | 34 |
| 345-465 | 300 | M30x200 | 5 | 4 | 35 | 27 | 15 | 106 | 30 | 200 | 34 | 38 |
| 420-560 | 360 | M36x220 | 5 | 5 | 40 | 32 | 20 | 126 | 36 | 210 | 40 | 45 |
| 460-650 | 420 | M42x315 | 8 | 6 | 50 | 35 | 25 | 148 | 42 | 250 | 46 | 53 |
| 530-755 | 480 | M48x315 | 8 | 6 | 55 | 39 | 20 | 168 | 48 | 280 | 52 | 60 |
| 450-550 | 390 | M56x230 | 8 | 8 | 60 | 46 | 26 | 196 | 56 | 330 | 60 | 70 |
| 680-950 | 600 | M60x400 | 8 | 8 | 65 | 49 | 28 | 210 | 60 | 360 | 65 | 75 |
| 730-1010 | 640 | M64x420 | 8 | 8 | 70 | 53 | 30 | 224 | 64 | 380 | 70 | 80 |
