Swivel Fairleads
We supply Single Sheave Swivel Fairleads,Double Sheave Swivel Fairleads etc types. All swivel fairlead are manufactured from high quality steel.
The fairleads are fitted with removable guide roller and hardened rope groove to ensure long-time usage.
Our fairleads can be designed as per your wire socket/ shackle size to reduce your installation problems.
If your swivel fairleads will be used on platform, need to get DNV/ABS etc,our rich project experience will help to smoothly meet the DNV / ABS class requirements ( material, load, suitable bearing etc ), help to reduce your project time and project cost.
STANDARD FEATURES
• Size: 19mm~96mm dia. wire
• Designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head
• Cast Steel Sheave / Plate Machined Sheave with Hardened Rope Groove for Longer Life

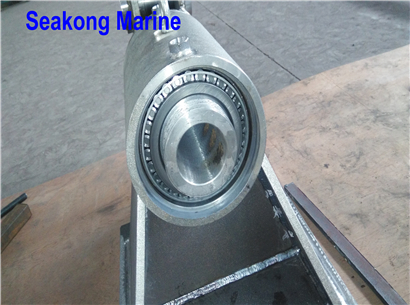

• Sealed Grease Lubricated Tapered Roller Bearings in Sheave and Swivelhead
• Weld Down Mounting Base
• Removable Guide Roller
• Epoxy Primer Coating
OPTIONAL FEATURES
•Tail Sheaves / Tail Rollers
•Bolt down mounting base
•Load monitoring system
•Special sheaves for high performance synthetic ropes
•Paint to your specifications
•Load test on request
•Third party certification, DNV & LR & ABS & BV certs are available.
Download Swivel Fairleads Catalogue |
OUR DESIGN CAPACITY
• Choose best suitable bearings by calculation

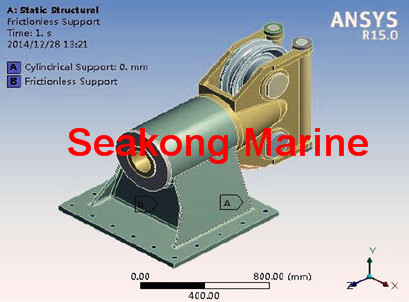

• Strength Calculation by ANSYS

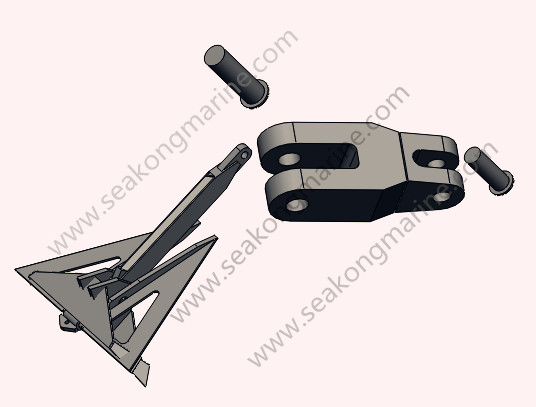

• We're able to supply HHP anchor+Swivel Shackle+Wire rope+Swivel Head Anchor Fairleads if you would like to save your time on choosing most suitable fittings (see below picture ).
ABOUT LOAD TESTING
If you aren't satisfied with FEA Strength Calculation Report or Hand Written Calculation Report, load testing is available on request.
• Max. 1000T Capacity Load Bench

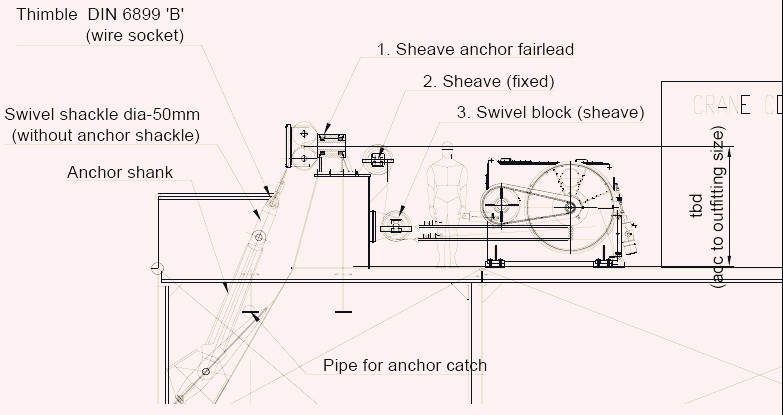

APPLICATION OF SWIVEL HEAD ANCHOR FAIRLEADS
Swivel Head Anchor Fairleads are popularly used in 4 Points Mooing System Or 8 Points Mooring System.
PRODUCT PICTURES

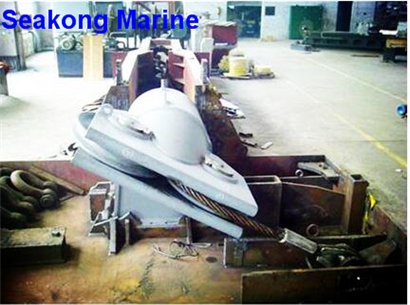

25mm Single Sheave Swivel Head Anchor Fairleads

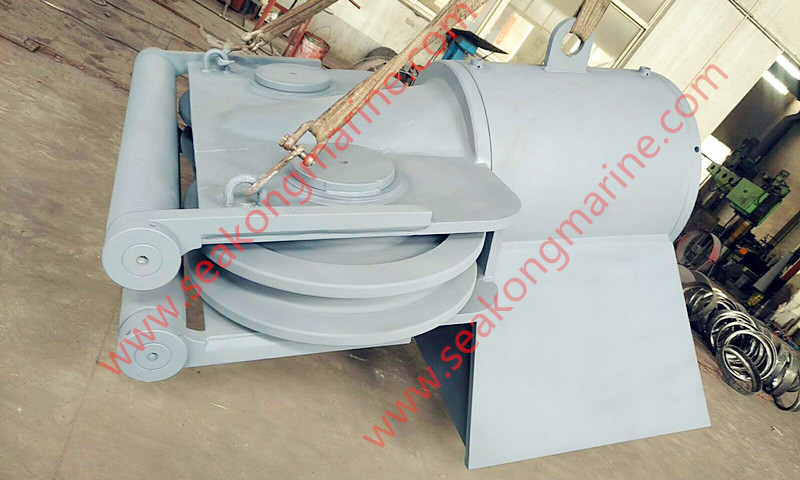

44mm Double Sheaves Swivel Head Anchor Fairleads

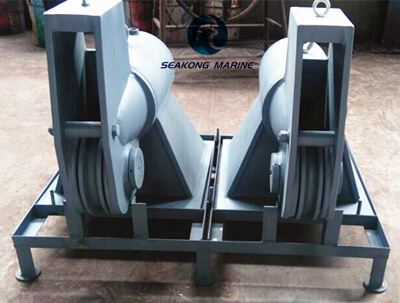

76mm Double Sheaves Swivel Head Anchor Fairleads
64mm Double Sheaves Swivel Head Anchor Fairleads
